WE PROVIDES

Providing All Types of Clean room Products and Services as like Modular Clean room Wall Panel, Celling Panel, Doors (Single Type, Double Type & Emergency Exit Door), PUF Coving & Flooring. Our Others Products are HVAC System with AHU, & Ducting Process. All Types of HVAC Accessories also Available into our company.

WALL PARTITION PANEL

Modular Wall Panels are made out of Double Skin Panels of PPGI/PCGI/SS304 with inner and Cluter Skin of 0.5mm 6mm 1mm as Standard Thickness The Wall Panels are of 1200mm and 3000mm as Standard With Panel Thickness Vanes from 50mm 60mm 80mm/ 100mm with Provision for PVC Conduits for Electrical Cables Panels are 80mmy 100mm are Specifically Designed to Carry Return Air Ducts Duit in Risers Panel Height can be Adjusted to 6000mm with Provision for Stackable Panels


INBUILT RISERS

Providing inbuilt Risers Fabricated by Our Aluminum 0 5mm dem bamm hee Creating Hollow Fortion in the Center of Modular Wall Panel with using 0 5mm Sheet on Duth Side The Sheet Finished with PPO 58304 Enfield PF Insulation.


SPECIFICATIONS

  • Fabricated By GL/Aluminum
  • Sheet Finished with PPG PCG
  • Infilled PUF Insulation

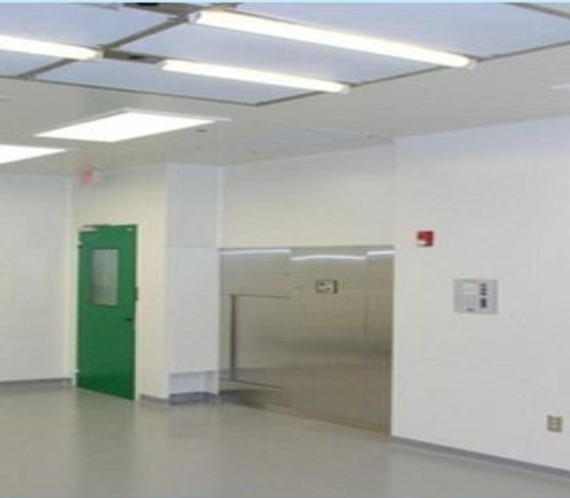

CEILING PANEL

A perfect celling makes a perfect cleanroom, Celling systems are designed to fit every requirement and adhere to stringent Quality Standards that fit in seamlessly with the rest of the room paneling. The Celling Panels are fastened to profile that are placed on a particle -tight extruded aluminum grid matrix with silicone sealant.


SPECIFICATIONS

  • Standard size: 1200 X 3000mm (Up to 6000mm Height).
  • MOC: GI Pre Coated/ GI Powder Coated/ SS-304/ PVC Laminate.
  • Thickness: 0.5mm/ 0.6mm/ 0.8mm/ 1mm.
  • Skin Type: PPGI/PCGI/ SS 304 Sheet.
  • Panel Thickness: 50mm / 60mm/ 80mm/ 100mm.
  • Fastended to extruded aluminium/ GI Profile.
  • Infill: PUF (40kg/m³)/Rockwool (96kg/m³) available on request.

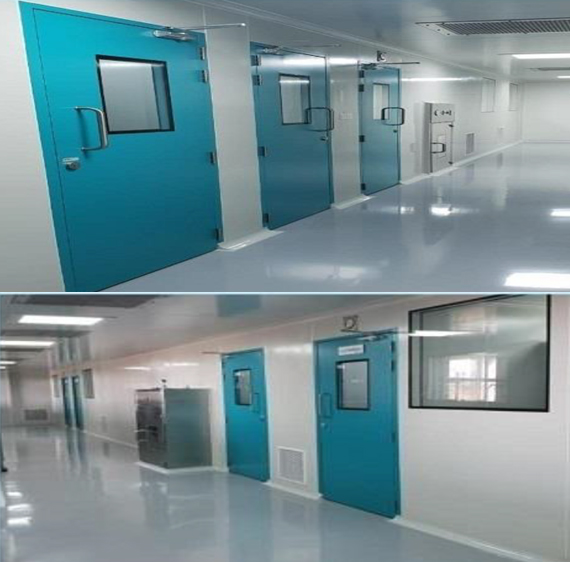

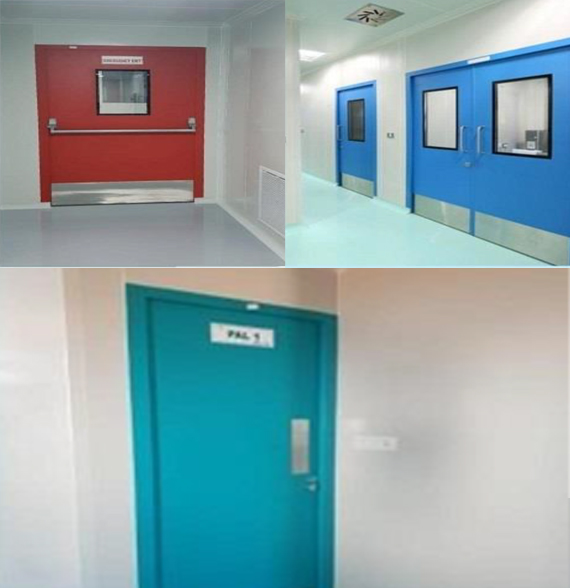

DOORS

Clean room Doors are Manufactured by Galvanized/ Stainless Steel Sheets with Lock Formed Edges. Insulated and Bonded with Polyurethane form, Honeycomb Paper of Mineral Wool Forming a Rigid Flush Fitting with innovative Flush Double Glazed Finished in Pure polyester Powder Coating of 60-80 Microns Forming a Smooth Surface Finish



SPECIFICATIONS

  • Fully Flush Surfaces with wall systems
  • Frame width Available in 50/ 80/ 100
  • Standard width of single door - 750mm/ 900mm/ 1000mm/1200mm
  • Standard width for double door 1200mm/ 1500mm/1800mm/2000mm
  • Best in class doors hardware
  • Custom dimensions available
  • DIFFERENT TYPE OF DOORS

  • Scientific Doors
  • Fire Rated Doors
  • Emergency Doors
  • Sliding Doors

HVAC SYSTEM


AIR HANDLING UNIT (AHU)

An AHU is a device used to condition and circulate air as part of the cooling and heating requirements of a room. As we specialize in Pharmaceutical Applications, the required sizing of an AHU is optimized to meet the intended purpose in the most efficient manner. Our Company Supplies Customized AHU' in combination with Dehumidifier, Humidifier,Energy Recovery Wheel or with Heat Pipe depending on the client's requirements.


  • BLOWER
  • COILS
  • TERMINAL BOX
  • FINE FILTER
  • DAMPER
  • GRILL, DEFFUSER
  • SS GRILLS

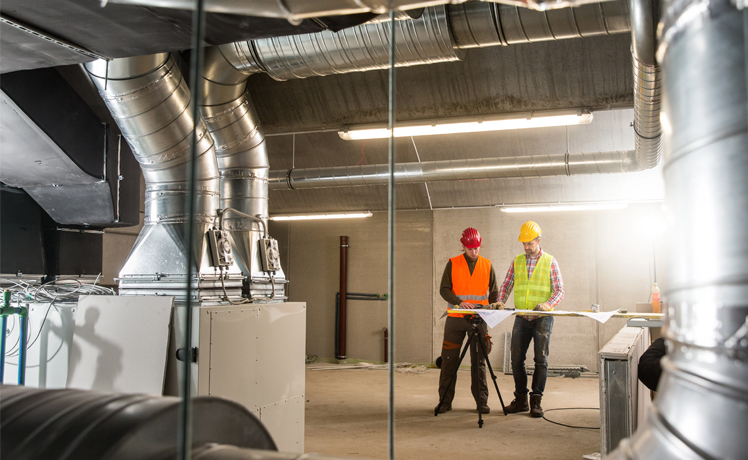

DUCTING SOLUTION

Our Supplier are highly experienced in the fabrication of Ducting and are in the process of redefining the fabrication technology. We believe more practical applications and less on theory and this actually made it possible for us to standardize the duct sizes as per CFM. Standardization helps fabricate materials well in advance and thus helps complete the project within the right time frames.

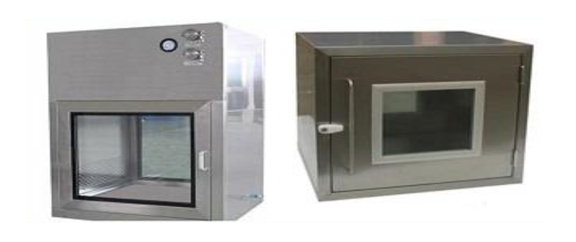

PASSBOX


We Supply & Apply of Pass box interlocking systems for Static & Dynamic Pass Box Controller. Our product are designed and manufactured considering long trouble free operation with easy serviceability. Designed products are tested for EMI/RFI interferes to avoid filed failure and are CE approved.
